Valves & Accessories

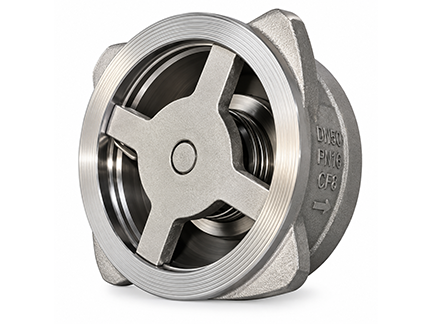

Disc Check Valves
UKL Non-Slam Check Valves are lift type non return valves used in pipelines to prevent back-flow of the fluid. Designed to fit between two flanges, these valves provide a compact installation when compared to the conventional flanged end check valves.
The Non-Slam Check Valves find application in various types of industries such as Chemical, Pharmaceutical, Power Generation, Textile, Water Treatment, Boilers, Breweries etc. These valves are used in process lines, hot & cold water systems, heating systems, steam and condensate lines, oil lines. (Not recommended for pulp lines and compressor delivery lines) The Non-Slam Check Valves have short overall length in comparison with the standard Flanged End Check Valves. The size and weight are considerably reduced, offering great advantage for installation, handling, transportation and storing.
Features
- Compact — requires little space in pipes
- Light weight compared to flanged end valves
- Extremely low operating pressures
- Lapped seats to provide tight shut-off
- Soft seat option available
- Easy to install and maintain
- Cam design on body diameter enables self centering during installation
- Can be mounted in any plane
- Suitable for wide variety of liquids, gases and vapors
- Size range: 15mm to 150mm
- Testing in accordance with API 598
- Available with IBR Certification
